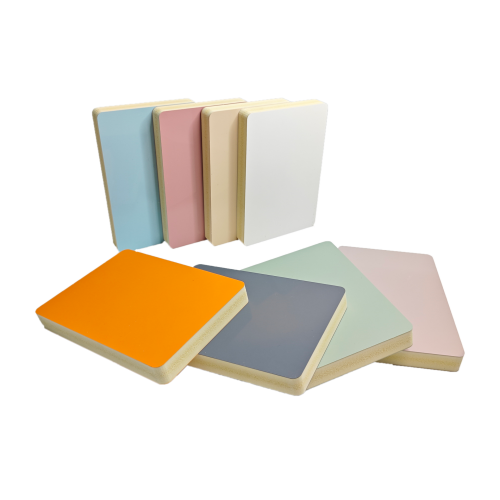

Colored WPC Co-Extruded Foam Board
White WPC Co-Extruded Foam Board
White WPC Co-Extruded Foam Board
Colored WPC Co-Extruded Foam Board
Colored WPC Co-Extruded Foam Board
Colored WPC Co-Extruded Foam Board
White WPC Co-Extruded Foam Board
White WPC Co-Extruded Foam Board
Colored WPC Co-Extruded Foam Board
Colored WPC Co-Extruded Foam Board

WPC Co-extruded Foam Sheet

Request a Quote
Categories , , , , , , , , , ,

SHARE:

Description

KINGSTAR WPC co-extruded foam board shares the identical manufacturing process with PVC co-extruded boards. The key difference lies in its core: WPC boards feature a wood-plastic composite (WPC) foam core instead of a pure PVC one. It combines the easy workability of wood with the moisture resistance of plastic, creating a superior substrate for modern cabinetry.

Product Range

Product KS-WPC Co-extruded Foam Board
Kind WPC Foam Sheet
Size 2440*1220mm
Thickness 17mm
Density Core:0.45-0.55g/cm³, Surface:1.2g/cm³
Structure Rigid PVC+Foam WPC+Rigid PVC
Colour White, Grey, Blue, Yellow, Pink, Brown, Khaki
Surface High Glossy, Rigid
All dimensions specified are standard dimensions. Other sizes and colours can be customized.

Key Features

  • Moisture Resistance
  • Low Maintenance
  • Light weight, waterproof
  • Good hardness with a smooth and shiny surface
  • Excellent formability
  • High impact resistance

Specifications

Technical Specification
Test Test Result Requirements of IS : 1328
Desnsity,Kg/m3 IS:2380 (Part III)- 1997 Reaffirmed 2013 567
Moisture content, % IS:2380 (Part III)-1997 Reaffirmed 2013 0.14
Water Absorption % IS:2380 (Part XVI)-1997 Reaffirmed 2013 　
(i) For 2 hrs soaking 　 0.08
(ii) For 24 hrs soaking 　 0.09
Thickness Swelling, % (For 2 hrs) IS:2380 (Part- XVII) -1997 Reaffirmed 2013 0.05
Modulus of Rupture, N/mm2 IS:2380 (Part-IV)-1997 Reaffirmed 2013 25.2
Modulus of Elasticity, N/mm2 IS:2380(Part-IV)-1997 Reaffirmed 2013 1989
Tensile Strength, MPa IS:2380(Part-VI)-1997 Reaffirmed 2013 1.3
Screw Withdrawal Strength, N IS:2380 (Part XIV)-1997 Reaffirmed 2013 1267
(A) Face (b)Edge 　 698
Nail Withdrawal Strength, N IS:2380 (Part XIV)-1997 Reaffirmed 2013 243
Shock Resistance Test, 5 Kgf IS:4020 (Part 7)-1998 Reaffirmed 2008 Not Applicable on this product
Water Resistance Test(at 60±2ᴼ C for 3hrs) IS:1734 (Part 6)-1998 Reaffirmed 2013 No deformation is observed
Knife Test IS:4020 (Part 14)-1998 Reaffirmed 2008 Passes the test
Resistance to steam IS:12823: 1990 (Reaffirmed 2015) Passes the Test
Resistance to crack IS:12823: 1990 (Reaffirmed 2015) Passes the Test
Resistance to cigarette burn IS:12823: 1990 (Reaffirmed 2015) Passes the Test
Resistance to stain (i)Coffee (ii) Acetic acid IS:12823: 1990 (Reaffirmed 2015) Passes the Test
Humidity Test (Varying) IS:4020 (Part 12)-1998 Reaffirmed 2008 Passes the Test
Condition I: At 27±2 c % 30±5%
Relative Humidity for one week
(a)Leangth (b)Width (c)Thickness (d)Diagonal
　
Condition 2: At 27±2 C% 85±5%
Relative Humidity for one week:
(a)Length (b)Width (c)Thickness (d)Diagonal
Thickness,mm IS:2380 (Part II)-1997 Reaffirmed 2013 18.8
Edge Straightness test, mm IS:2380 (Part II)-1997 Reaffirmed 2013 0.4
Squareness,mm IS:2380 (Part II)-1997 Reaffirmed 2013 Nil
Workability ……. Satisfactory
