PVC Laminated Foam Sheet

Description

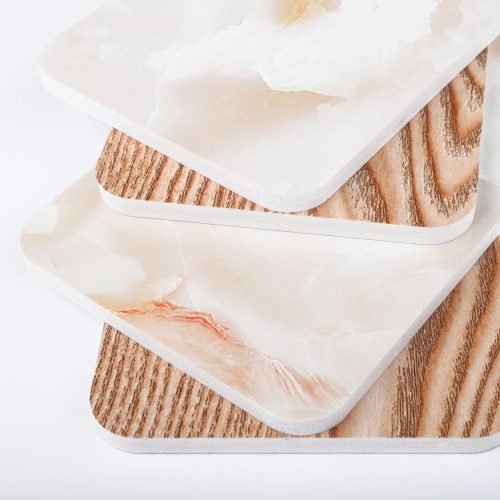

KINGSTAR laminated PVC foam sheet is a decorative material primarily composed of a PVC foam core, which is then surfaced with a layer of laminated decorative film. Available in various colors, textures, and finishes, PVC laminated foam sheets are a decorative alternative to wood, metal, and other traditional materials.

Product Range

Product	KS-PVC Laminated Foam Sheet
Kind	PVC Foam Sheet
Size	2440*1220mm
Thickness	4-15mm
Density	0.5-0.8g/cm³
Structure	Laminated Film+Foam PVC Sheet
Laminated Film Options	PET Film, PVC Film, Acrylic Sheet, Aluminum Sheet, etc
All dimensions specified are standard dimensions. Other sizes and colours can be customized.

Key Features

Lightweight
Water-resistant
Self-extinguishing
Anti-mold
Eco-friendly
Easy to install
Low maintenance cost

Specifications

Typical Properties
Thickness	Units	Values
Thickness	mm	1- 10	11- 30
Characteristic	Foam PVC Sheet Values
Base Polymer	Polyvinyl Chloride PVC
Form	Semi-Finished Sheet Product
Physical Properties
Density	g/㎤	0.35-0.65	0.50-0.55
Hardness	Shore-D	≥ 25	≥ 40
Smell		Odourless	Odourless
Water absorption	%	0.1	0.1
Water Solubility		Insoluble	Insoluble
Mechanical Properties
Tensile strength at yield	MPa	>13	>15
Elongation at break	%	≥ 15	≥ 13
Modulus of Elasticity	Mpa	900-1500	900-1500
Flexural Strength	Mpa	≥ 32	≥ 32
Impact Resistance (CHARPY)	15kj/㎡	≥ 15	≥ 15
Impact Resistance(1Z0D)	15kj/㎡	≥ 9	≥ 9
THERMAL Properties
Vicat Softening temperature	°c	>72	>72
Heat Deflection Temperature @ 1.8MPa	°c	≥58	≥57
Coefficient of linear expansion	Mm/m °c	0.068	0.068
Thermal conductivity	W/mK	0.06	0.06
Service Temperature	°c	-20 to 60	-20 to 60
ELECTRICAL Properties
Surface Resistivity @60 Hz	Ω	1 x 10¹⁴	1 x 10¹⁴
Volume Resistivity, 50% RH	Ωcm	1 x 10¹⁵	1 x 10¹⁵
Dielectric Constant @1MHz		2.4	2.4
Dielectric strength. 1/8″ th.	kv	≥90	≥90
* The values are a list of typical results by testing large numbers of specimens. Additional processing can influence the properties, so we recommend caution must be adhered towhen applied to the finished products. Physical properties of plastic sheeting are represented as ‘Typical’. Information contained herein is considered accurate to the best of our knowledge. It is offered for your consideration and investigation, and is not to be construed as representation or warranty expressed or implied. Our warranties are limited to those expressly stated in formal contracts or in conditions of sale on our invoices and order acceptances. No information herein shall be construed as an offer of indemnity for infringement or as a recommendation to use the products in such a manner as to infringe any patent, domestic or foreign. The ‘Typical’ properties of our plastic sheet cannot be automatically used when engineering finished components, and the fabricator or end user is responsible for insuring the suitability of our products for their specific application or end use!

Application

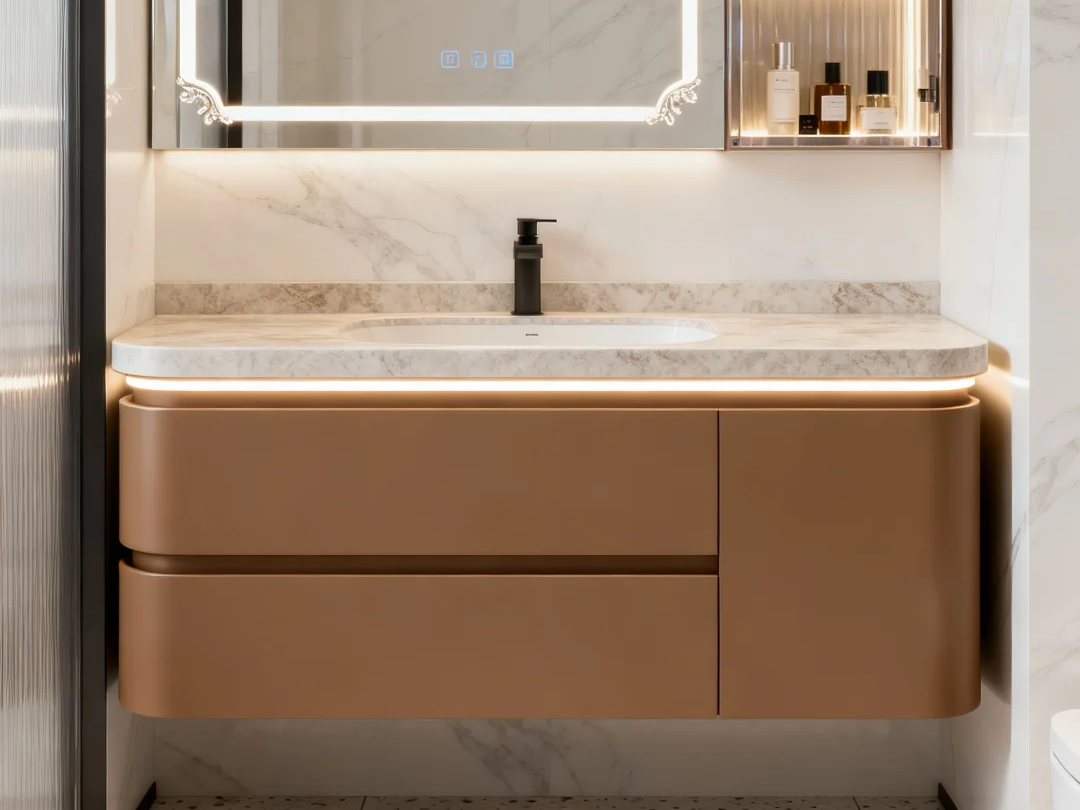

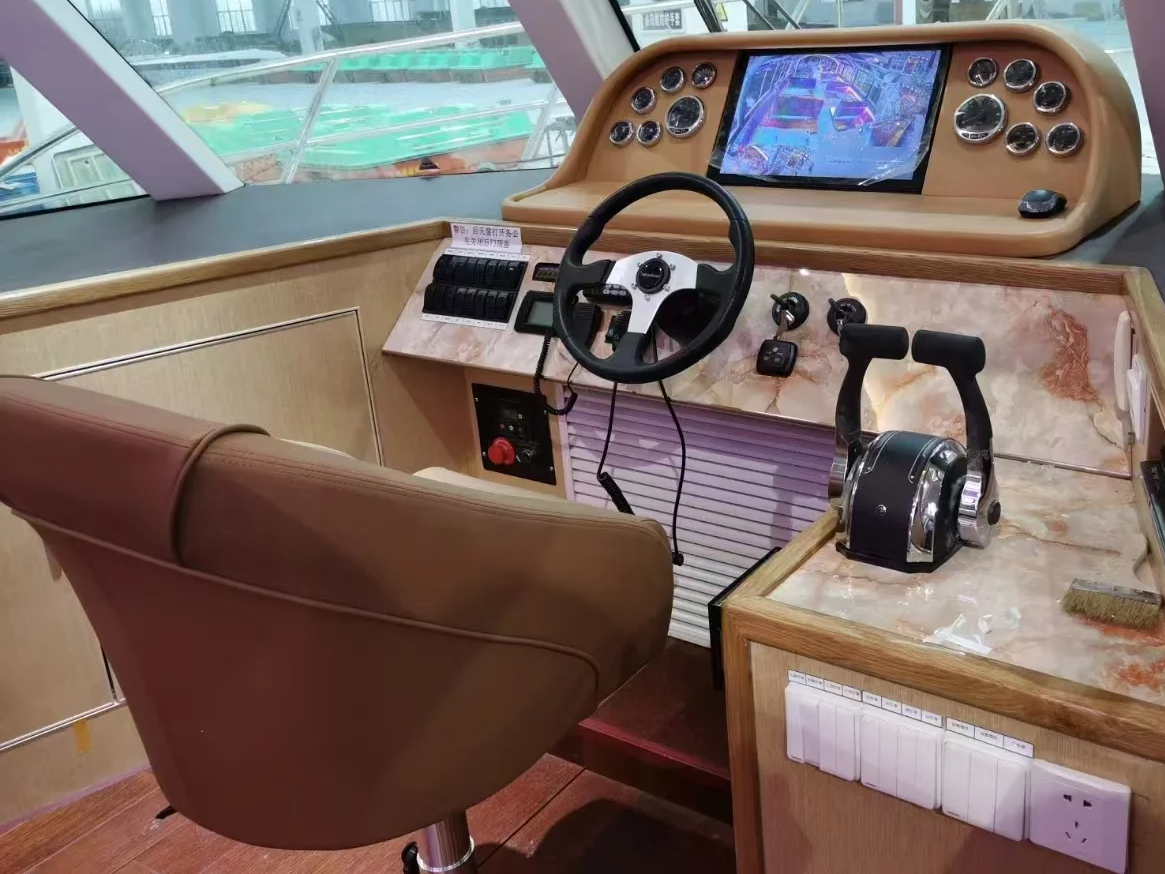

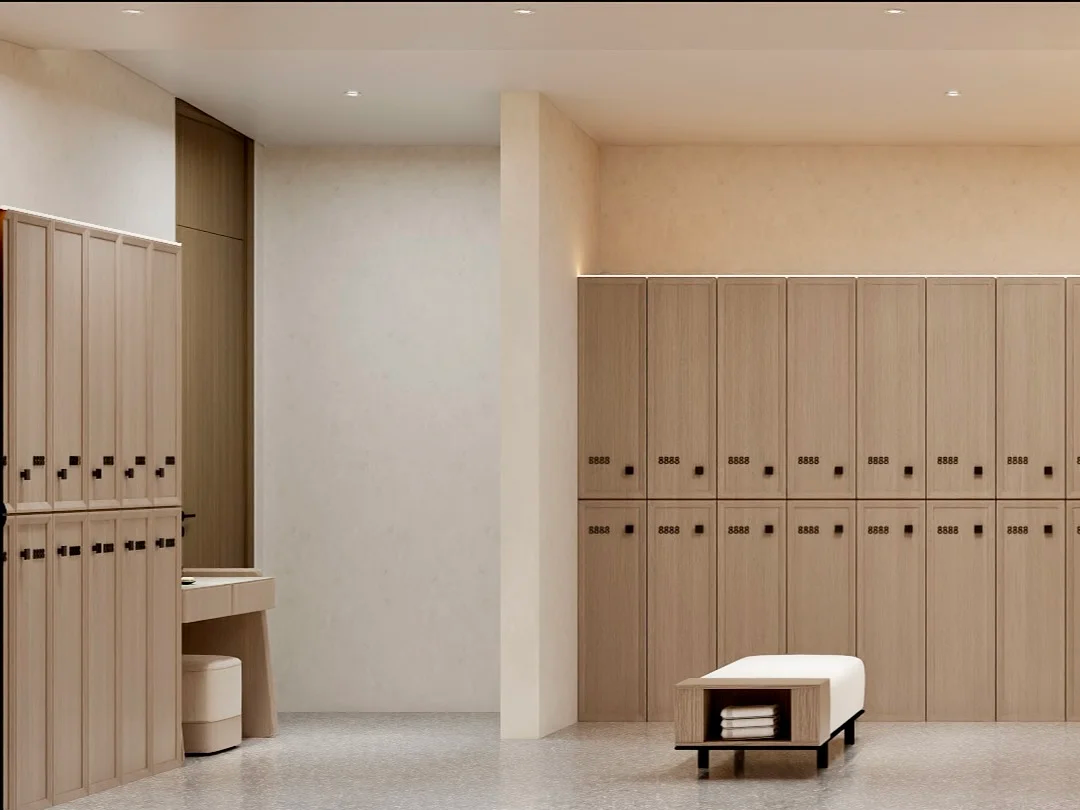

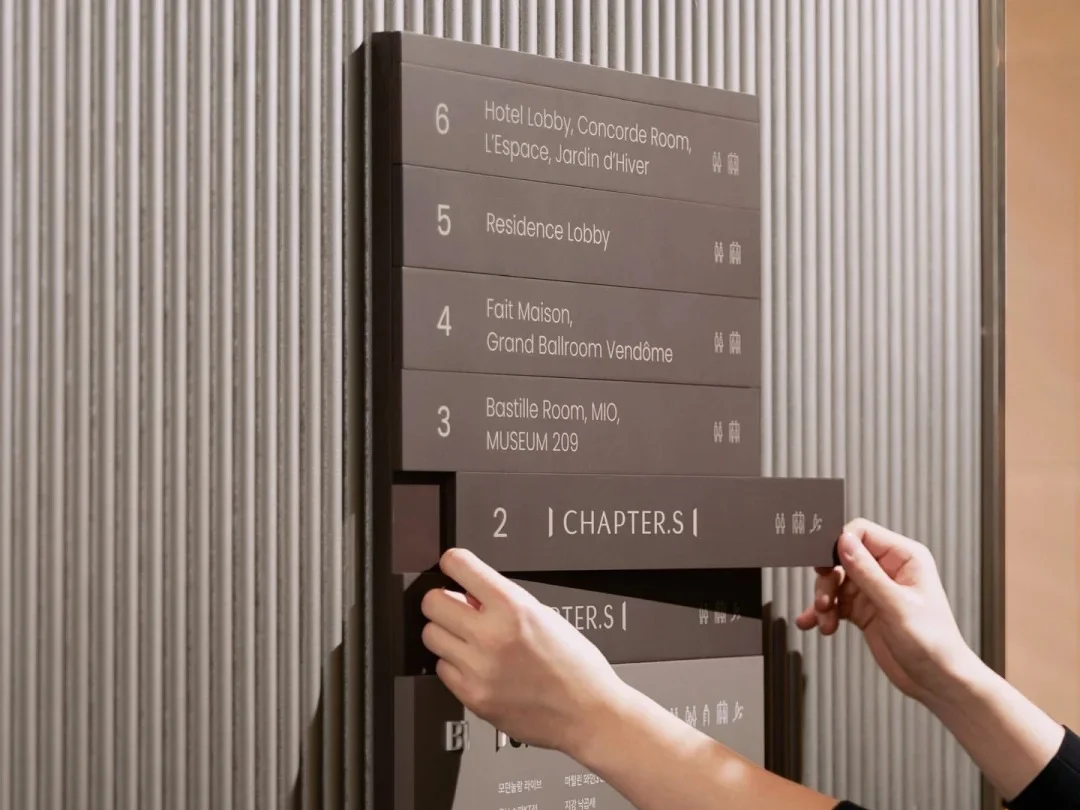

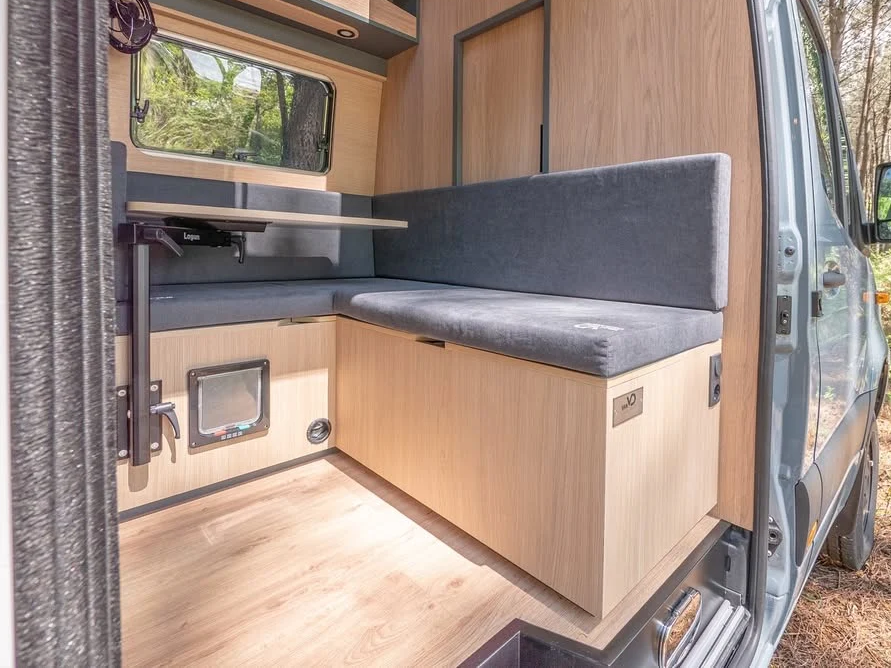

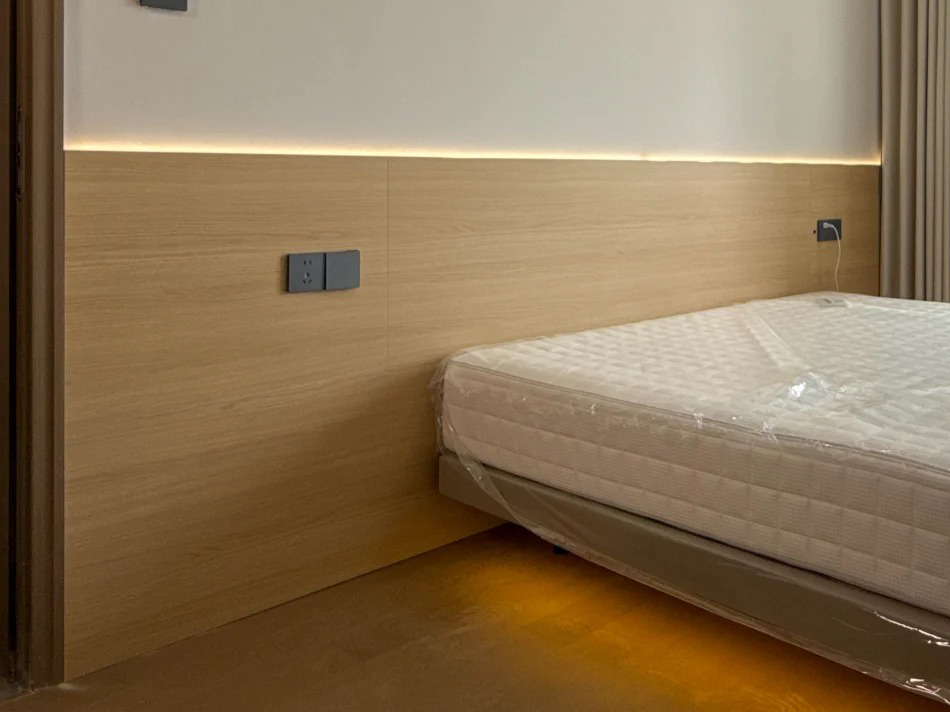

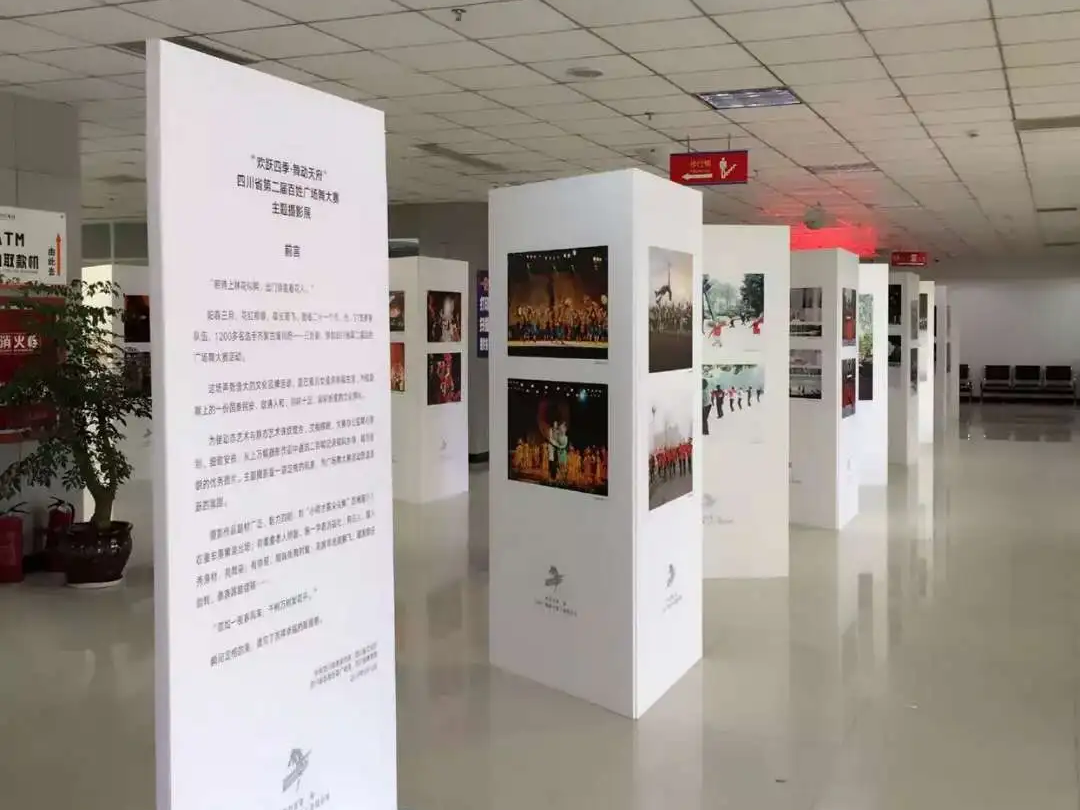

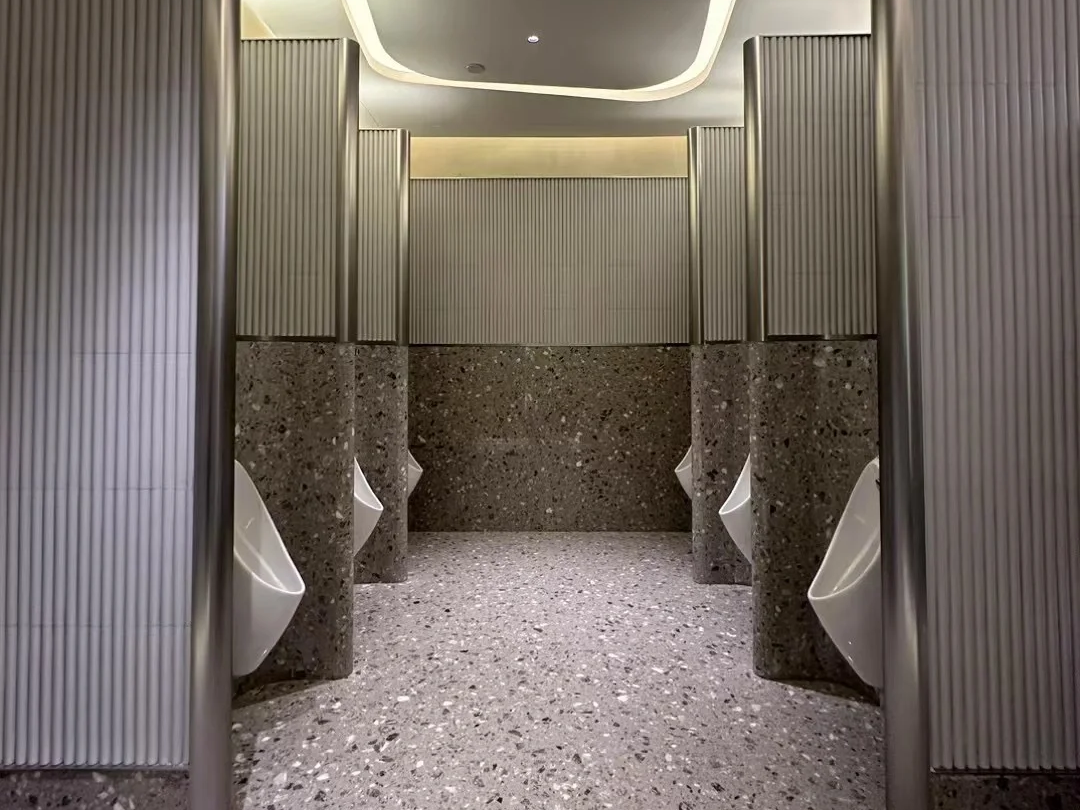

Laminated PVC foam board combines beauty, performance, and efficiency, making it the perfect choice for your construction projects, commercial spaces, or product manufacturing. It’s lightweight and easy to install, yet offers luxurious textures that rival real wood and stone. Naturally waterproof and moisture-resistant, it effortlessly handles demanding environments like kitchens and bathrooms, eliminating worries about mold. Whether you’re quickly creating eye-catching advertising displays, customizing lightweight yet durable interiors for vehicles and vessels, or mass-producing stylish and resilient custom furniture, this material helps you save time and money while achieving outstanding results. Choosing it means opting for a reliable, flexible, and highly cost-effective path to success—start using it today to add a competitive edge to your next project!
